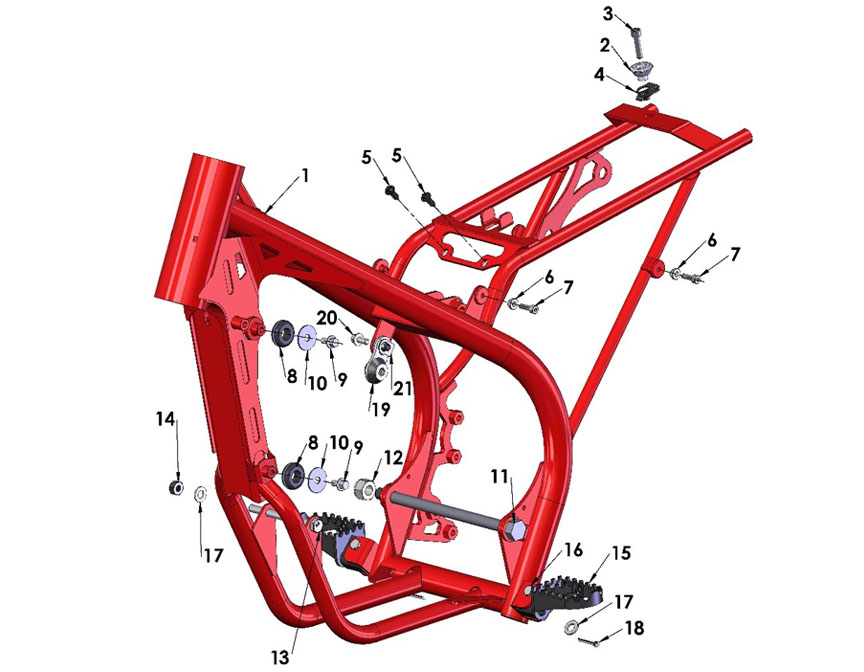

| 1 | FACS2016FWE | FRAME - CX50 SR KING VENOM | $653.08 | |
| 2 | TCC60018 | SEAT MOUNT SPACER REAR 65/50 | $13.33 | |
| 3 | HCBC0625 | M6 X 25 SHCS ZINC | $1.09 | |
| 4 | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $2.2 | |
| 5 | HCSP0003 | SCREW - PLASCREW | $0.98 | |
| 6 | TCC60017 | WASHER - 5MM BODY PANEL | $4.32 | |
| 7 | HCBC0514 | M5 X 14 SHCS ZINC | $1.09 | |
| 8 | MCC6GR01 | GROMMET - RADIATOR | $4.76 | |
| 9 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $1.09 | |
| 10 | HCWF1478 | 1/4`` FLAT WASHER 7/8`` OD | $0.53 | |
| 11 | HCBH1203 | R/B WCMU0016 - M12 X 188.5 PIVOT BOLT | $32.14 | |
| 12 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $3.2 | |
| 13 | HCBH0880 | M8 X 80 HH ZINC | $6.66 | |
| 14 | HCNL0801 | R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL | $1.09 | |
| 15 | TAMU0005 | FOOTPEG SET (LEFT & RIGHT) | $63.41 | |
| 16 | FCMU0031 | CLEVIS PIN - FOOTPEG | $4.32 | |
| 17 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $0.53 | |
| 18 | HCCP0008 | COTTERPIN - 1/8` X 3/4` 316 STAINLESS | $0.53 | |
| 19 | XCMU0033 | ISOLATION MOUNT | $18.34 | |
| 20 | HCBF0616 | M6 X 16 FLANGED HD HEX 8MM ZINC | $1.09 | |
| 21 | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $2.2 | |
| ACCESSORY | TCMU0106 | SPRING - FOOTPEG STD KING/JR PEG | $5.43 | |
| KIT | TCMU0139 | ULTRAWIDE FOOTPEG KIT 50cc / 65cc | $77.76 | |
