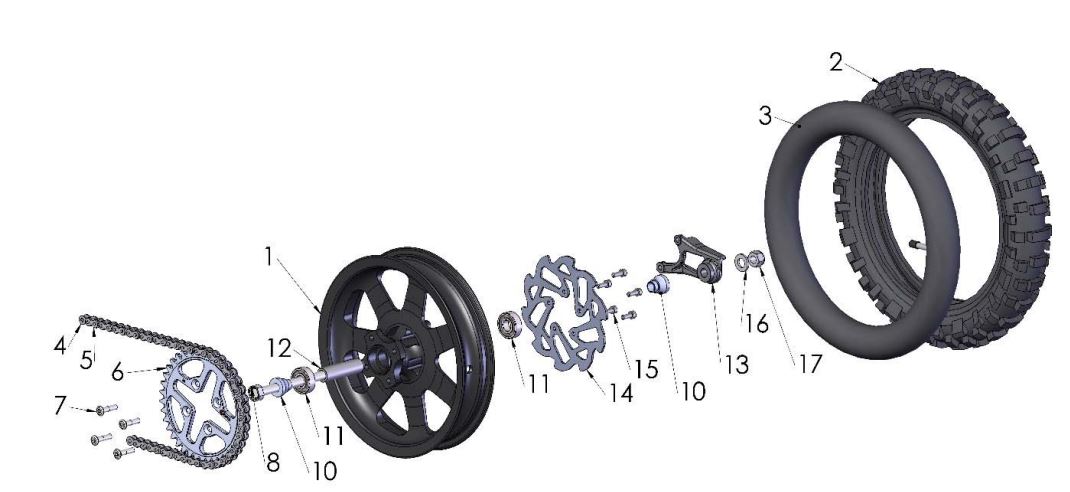

| Ref | Part Number | Description | Retail | |
|---|
| 1 | WAMUR020BLK | WHEEL ASSEMBLY- REAR - BLK | $ 360.41 |
|
| 2 | WCMU1075D33 | R/B WCMU1075D34 - TIRE - REAR - 70/100-10 - DUNLOP MX33 | $ 52.27 |
|
| 3 | WCMUTU10 | TUBE - 250/275 - 10 INCH | $ 9.43 |
|
| 4 | PCMU0001 | CHAIN - MASTER LINK | $ 2.2 |
|
| 5 | PCMU0088 | CHAIN 420H 88L FOR JR/P3 14/37 | $ 23.23 |
|
| 6 | PCC50138 | SPROCKET 38T - ALUM - PDM BOLTS | $ 64.88 |
|
| 7 | HCSP0701 | 7MM TORX FLAT HEAD | $ 2.76 |
|
| 7A | HCWF0701 | 7MM FLAT WASHER | $ 0.53 |
|
| 7B | HCNL0701 | M7 LOCKNUT | $ 1.09 |
|
| 8 | WCMU0016 | M12 X 195MM AXLE / PIVOT BOLT | $ 32.14 |
|
| 10 | WCMU0101 | SPACER WHEEL 50CC FR & RR LH | $ 14.33 |
|
| 11 | WCMU0120 | BEARING - WHEEL-SEALED HD | $ 20.01 |
|
| 12 | WCMU0041 | SPACER - WHEEL BEARING - REAR 50CC - 2018 - CURRENT | $ 14.33 |
|
| 13 | BCMU0045 | BRAKE CARRIER - 10IN REAR - CARD 2 PISTON | $ 76.65 |
|
| 14 | BCMU0222 | ROTOR - BRAKE - FRONT/REAR - 50CC CARD | $ 65.52 |
|
| 15 | HCBC0514 | M5 X 14 SHCS ZINC | $ 1.09 |
|
| 16 | HCWF1202 | 12MM FLAT WASHER | $ 0.53 |
|
| 17 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| ACCESSORY | HKMU0002 | BOLT KIT - REAR SPROCKET - FLAT HEAD- CX50 | $ 16.67 |
|
