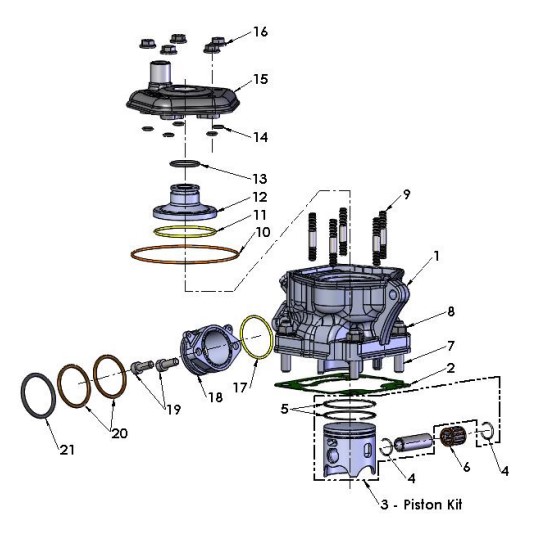

| 1 | ECC60557 | CYLINDER KIT - CX65 - 2022 | $644.18 | |
| 2-2 | ZCC60302 | GASKET - 0.2MM - CYLINDER BASE - 65CC 2013 - 2023 | $12.11 | |
| 2-3 | ZCC60303 | GASKET - 0.3MM - CYLINDER BASE - 65CC 2013 - 2023 | $12.11 | |
| 2-4 | ZCC60304 | GASKET - 0.4MM - CYLINDER BASE - 65CC 2013 - 2023 | $12.11 | |
| 2-5 | ZCC60305 | GASKET - 0.5MM - CYLINDER BASE - 65CC 2013 - 2023 | $12.11 | |
| 2-6 | ZCC60306 | GASKET - 0.6MM - CYLINDER BASE - 65CC 2013 - 2023 | $12.11 | |
| 2-7 | ZCC60307 | 0.7MM GASKET | $12.11 | |
| 2-8 | ZCC60308 | GASKET - 0.8MM - CYLINDER BASE - 65CC 2013 - 2023 | $12.11 | |
| 3A | ECC60208A | PISTON KIT 65 44.5MM BORE SIZE A- NON BRIDGED | $110.03 | |
| 3B | ECC60208WP | WRIST PIN - PISTON - CAST 44.5MM 65 | $18.88 | |
| 4 | ECC60222 | CIRCLIP - PAIR - CAST PISTON - 44.5MM | $4.43 | |
| 5 | ECC60221 | RINGS - FOR CAST PISTON - 44.5 | $32.14 | |
| 6 | ECDC0061 | BEARING - WRISTPIN 65CC | $14.11 | |
| 7 | ECC60109 | STUD - CYLINDER 8MM X 44.5MM | $7.21 | |
| 8 | HCNF0801 | 8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS | $1.09 | |
| 9 | ECC60107 | STUD - CYLINDER HEAD 6MM X 41MM | $5.43 | |
| 10 | ZCC60009 | O-RING - CYL HEAD LARGE - 65CC & VENOM | $7.65 | |
| 11 | ZCMU0R05 | | $ | |
| 12 | ECC60207 | CYLINDER HEAD INSERT - 2015 & LATER | $105.58 | |
| 13 | ZCMUOR23 | ORING - HEAD INSERT - VITON | $4.98 | |
| 14 | ZCMUOR03 | O-RING 6.07X1.78 SILICONE | $1.09 | |
| 15 | ECC60149 | CYLINDER HEAD OUTER - 65CC & VENOM | $98.9 | |
| 16 | HCNF0601 | 6MM FLANGE NUT-ZINC - CLASS 10 | $0.64 | |
| 17 | ZCMUOR07 | O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP | $4.43 | |
| 18 | ECMU0262 | FLANGE - EXHAUST CX50 VENOM & 65 2017-2025 | $49.94 | |
| 19 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $1.09 | |
| 20 | ZCMOTE11 | O-RING - EXHAUST FLANGE | $3.2 | |
| 21 | ZCMUOR11 | O`RING - EXHAUST PIPE CUSHION - CX65 | $2.54 | |
| KIT 1 | ZKMUOR14 | ORING KIT - TOP END - FANG VALVE 65 | $16.81 | |
| NOT SHOWN | EAC62022 | ENGINE - 2022 CX65 PV | $2920.88 | |
