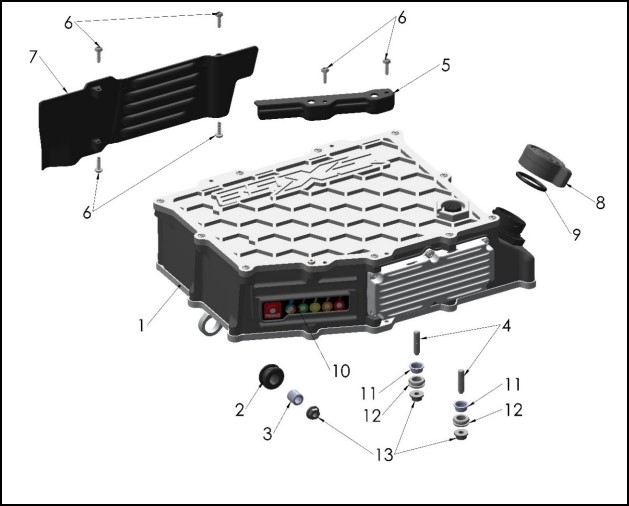

| Ref | Part Number | Description | Retail | |
|---|
| 1 | DACE10001MP | BATTERY ASSY - 1.0 kWh - 48V | $ 0 |
|
| 2 | DCCE10010 | GROMMET - REAR BATTERY MOUNT - 1kWh | $ 6.88 |
|
| 3 | DCCE10009 | COMP LIMITER - REAR BATTERY MOUNT - 1kWh | $ 7.88 |
|
| 4 | DCCE10006 | STUD - FRONT BATTERY MOUNTING | $ 1.98 |
|
| 5 | DCCE10012 | SHIELD - BATTERY SIDE RIGHT | $ 16.88 |
|
| 6 | HCTF0416 | M4X16MM THREAD FORMING SCREW FOR PLASTIC | $ 1.59 |
|
| 7 | DCCE10013 | SHIELD - BATTERY SIDE LEFT | $ 16.88 |
|
| 8 | DCCEMU001 | BLOCK OFF - CONNECTOR - BATTERY | $ 26.88 |
|
| 9 | ZCCEMUOR4 | ORING - 3.5mm X 27mm ID - BATTERY BLOCK OFF CAP | $ 2.48 |
|
| 10 | BCCE10005 | | $ |
|
| 11 | DCCE10008 | COMP LIMITER - FRONT BATTERY MOUNT 1kWh | $ 7.88 |
|
| 12 | DCCE10007 | GROMMET - BATTERY FRONT MOUNT 1kWh | $ 6.88 |
|
| 13 | HCNW0601 | 6MM WASHER NUT - 19MM OD FREE SPINNING | $ 4.98 |
|
