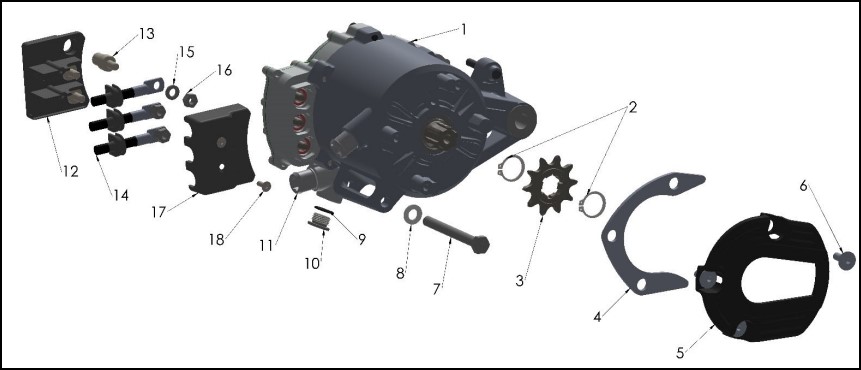

| Ref | Part Number | Description | Retail | |
|---|
| 1 | JACEMU001 | R/B JACEMU001B - MOTOR ASSEMBLY - COBRA - SMALL VEHICLE | $ 0 |
|
| 2 | ECKGSR03 | SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT | $ 2.54 |
|
| 3 | PCMU0010 | SPROCKET - FRONT - 10T - 415 CHAIN | $ 22.12 |
|
| 4 | JCCEMU005 | CASE SAVER - ELECTRIC MOTOR | $ 22.88 |
|
| 5 | JCCEMU008 | R/B JCCEMU023 SPROCKET GUARD - CASE SAVER - 2024 | $ 24.88 |
|
| 6 | HCSP0610BLK | BOLT - SHOULDER - 6MM ALUMINUM - BLACK | $ 3.2 |
|
| 7 | HCBH0880 | M8 X 80 HH ZINC | $ 6.66 |
|
| 8 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 9 | ZCMUB014 | O-RING - KICK SHAFT & OIL FILL PLUG | $ 1.42 |
|
| 10 | ECMU0272 | PLUG - OIL FILL - OIL DRAIN - COOLANT - VENOM | $ 12.11 |
|
| 11 | ECMU0132 | FITTING-COOLANT | $ 27.68 |
|
| 12 | JCCE50036 | SPACER - INSULATING - PHASE LEAD | $ 9.88 |
|
| 13 | JCCE50035 | STUD - PHASE - RING LUG STYLE | $ 18.98 |
|
| 14 | SEE ELECTRICAL | | $ |
|
| 15 | HCWF0601 | M6 FLAT WASHER DIN 125A - ZINC CLEAR | $ 0.53 |
|
| 16 | HCNS0601 | M6 NUT DIN 934 CLASS 8 - ZINC CLEAR | $ 0.53 |
|
| 17 | JCCE50044 | CAP - SPACER - INSULATING - PHASE LEAD | $ 9.88 |
|
| 18 | HCFH0412 | M4 X 12 - FLAT HEAD - ZINC | $ 2.2 |
|
| FLUID | MCMUMF32 | ELECTRIC MOTOR FLUID - 32 OZ BOTTLE | $ 28.88 |
|
