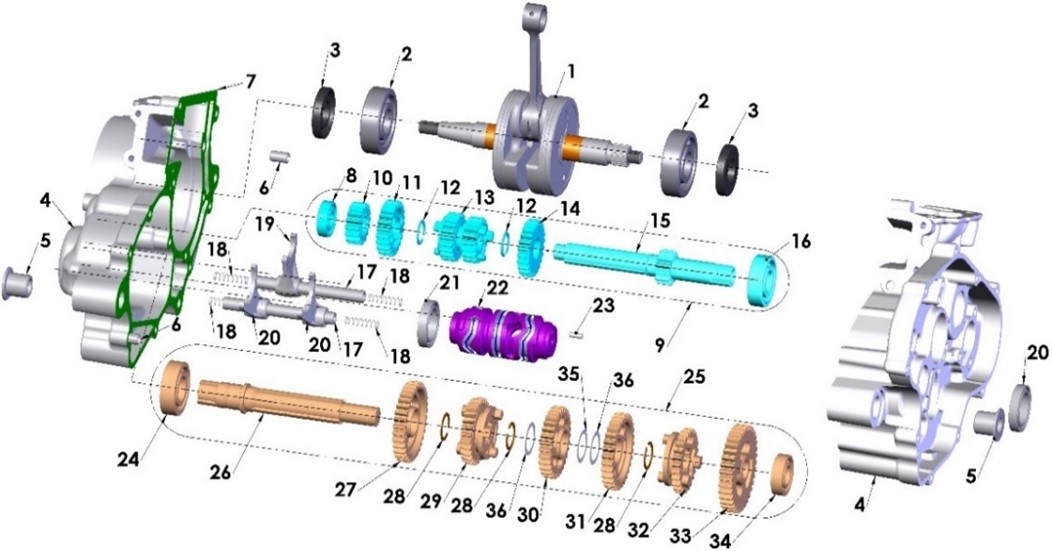

| Ref | Part Number | Description | Retail | |
|---|
| 1 | ECC60219 | R/B ECC60188 CRANKSHAFT 65 2017 | $ 372.65 |
|
| 2 | ECR60007 | BEARING - CRANKSHAFT - C4 | $ 38.81 |
|
| 3 | ECDC0024 | SEAL - CRANKSHAFT | $ 10.33 |
|
| 4 | EKC62023 | ENGINE CASE SET - CX65 WITH BEARINGS AND SEALS | $ 758.88 |
|
| 5 | ECC60028 | BUSHING - ENGINE PIVOT - 12MM | $ 13.22 |
|
| 6 | ECMU0122 | DOWEL - HOLLOW - 8.4 x 14 x 7 - AISI 1215 | $ 2.2 |
|
| 7 | ZCC60014 | GASKET - CENTERCASE PV 2015 CX65 | $ 15.56 |
|
| 8 | ECKG0031 | BEARING 6001 NO SEALS | $ 9.88 |
|
| 9 | EAC60041P | PRIMARY SHAFT SUB-ASSY - POLISHED - NO BEARINGS | $ 277.42 |
|
| 10 | ECC60306M | GEAR - 2ND INPUT 16T INVOLUTE - POLISHED | $ 51.05 |
|
| 11 | ECDC0005M | GEAR - 5TH INPUT 23T - POLISHED | $ 51.05 |
|
| 12 | ECDC0003 | SNAP RING - EXT 17MM | $ 2.2 |
|
| 13 | ECC60304M | GEAR - 3/4TH INPUT 18/21T - INVOLUTE - POLISHED | $ 71.53 |
|
| 14 | ECDC0002M | GEAR - 6TH INPUT 24T - POLISHED | $ 55.5 |
|
| 15 | ECC60301M | SHAFT - TRANS INPUT - INVOLUTE - POLISHED | $ 110.03 |
|
| 16 | ECMU0216 | R/B ECMU0016 - BEARING, PRIMARY CLUTCH SIDE | $ 17.67 |
|
| 17 | ECC60070 | ROD - SHIFTER - HOLLOW (USE WITH ECC60071 SPRING) | $ 16.56 |
|
| 18 | ECC60071 | SPRING - SHIFTER ROD | $ 5.43 |
|
| 19 | ECDC0048 | SHIFT FORK - INPUT | $ 54.39 |
|
| 20 | ECDC0049 | R/B ECC60256 - SHIFT FORK,OUTPUT | $ 61.07 |
|
| 21 | ECDC0022 | BEARING - SHIFT DRUM | $ 22.12 |
|
| 22 | ECC60186 | SHIFT DRUM - MACHINED - 2015 & NEWER | $ 143.42 |
|
| 23 | ECDC0051 | DOWEL PIN 4X16.0 | $ 2.2 |
|
| 24 | ECKGBR01 | BEARING OUTPUT- 50 & 65 | $ 29.91 |
|
| 25 | EAC60042P | OUTPUT SHAFT SUB-ASSY - POLISHED - NO BEARINGS | $ 356.38 |
|
| 26 | ECC60307M | SHAFT - TRANS OUTPUT - INVOLUTE - POLISHED | $ 83.32 |
|
| 27 | ECC60114M | GEAR - 2ND OUTPUT 34T 4 DOG SQUARE - POLISHED | $ 58.4 |
|
| 28 | ECDC0017 | SNAP RING - EXT 18MM HEAVY DUTY | $ 2.76 |
|
| 29 | ECC60323M | GEAR - 5TH OUTPUT 28T INVOLUTE 4LD - POLISHED | $ 74.88 |
|
| 30 | ECC60111M | GEAR - 4TH OUTPUT 30T 4 DOG SQUARE - POLISHED | $ 58.4 |
|
| 31 | ECC60110M | GEAR - 3RD OUTPUT 31T 4 DOG SQUARE - POLISHED | $ 58.4 |
|
| 32 | ECC60325M | GEAR - 6TH OUTPUT 26T INVOLUTE - 4LD | $ 74.88 |
|
| 33 | ECC60116M | GEAR - 1ST OUTPUT 37T 4 DOG SQUARE - POLISHED | $ 58.4 |
|
| 34 | ECDC0021 | BEARING - OUTPUT | $ 27.68 |
|
| 35 | ECC60160 | SHIM - TRANSMISSION - 26 x 0.2 x 20 | $ 1.91 |
|
| 36 | ECC60161 | SHIM - TRANSMISSION - 25 x 0.5 x 20 | $ 1.91 |
|
| AACCESSORY 1 | EKC60007 | KIT - CONNECTING ROD -90MM MANUAL W PIN AND BIG END BEARINGS | $ 92.23 |
|
| ACCESSORY 2 | ECMU0040 | SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15 | $ 2.76 |
|
| ACCESSORY 3 | ECMU0040T | SHIM - CLUTCH TO HUB SPACER 22 x 0.38 x 15 | $ 2.76 |
|
| CASE SCREWS - LONG | HCBC0604 | R/B HCBC0635 - M6 X 35 SHCS ZINC | $ 1.09 |
|
| CASE SCREWS - SHORT | HCBC0603 | R/B HCBC0630 - M6 X 30 SHCS ZINC | $ 1.09 |
|
| NOT SHOWN 1 | ECMU0178 | SHIM - SPROCKET - 0.5 THK 20/28 ID/OD | $ 3.32 |
|
